Price: $2599.99
Electrical Specifications
Nominal Voltage | Nominal Capacity | Energy | Self Discharge | Maximum Batteries Connected In Series | Maximum Series Voltage | BMS |
51.2V | 100Ah | 5120Wh | ＜3%/month | 1S16P | 51.2V | 100A |
Display and key
Display size | L2.9*W1.9in（73.44mm*48.96mm） |
Resolution ratio | 480*320P |
Capacity light | 6 lights |
Running indicator light | 1 light |
Alarm light | 1 light |
Switch light | 1 light |
power button | 1 button |
Discharge Specifications
Maximum Continuous Discharge Current | 100A |
Peak Discharge Current | 200A（1s） |
Discharge Over-Current Protection | 120A |
Recommended Low Voltage Disconnect | >43.2V |
Discharge Under-Voltage Protection | 40V |
Reconnect Voltage | 48V |
Mechanical Specifications
Dimensions (LxWxH) | L18.9*W17.4*H5.2（in） |
Weight | 99 lbs |
Terminal Type | 120A Internal Screw Through Wall Terminal |
Terminal Hole | M6*14mm |
Case Material | Steel Plate Cold Common (SPCC) |
Enclosure Protection | IP20 |
Chemistry | LiFePO4 |
Temperature Specifications
Discharge Temperature | -20°C to 60°C / -4°F to 140°F |
Charge Temperature | 0°C to 50°C / 32°F to 122°F |
Recommended Storage Temperature | -10°C to 50°C / 14°F to 122°F |
BMS High-temperature Cut-off | 65°C |
BMS Reconnect Temperature | 55°C |
Charge Specifications
Recommended Charge Current | 20A |
Maximum Continuous Charge Current | 100A |
Recommended Charge Voltage | 57.6V±0.8V |
Communication interface
Parallel communication interface | RJ45（RS485*2） |
Communication interface with inverter | RJ45(RS485*1,CAN*1） Compatible with most inverter |
Features
Installation | Optional Stacking Brackets |
Recognized Specifications
Certifications | UL/FCC/CE/RoHS/UN38.3/CE-RED |

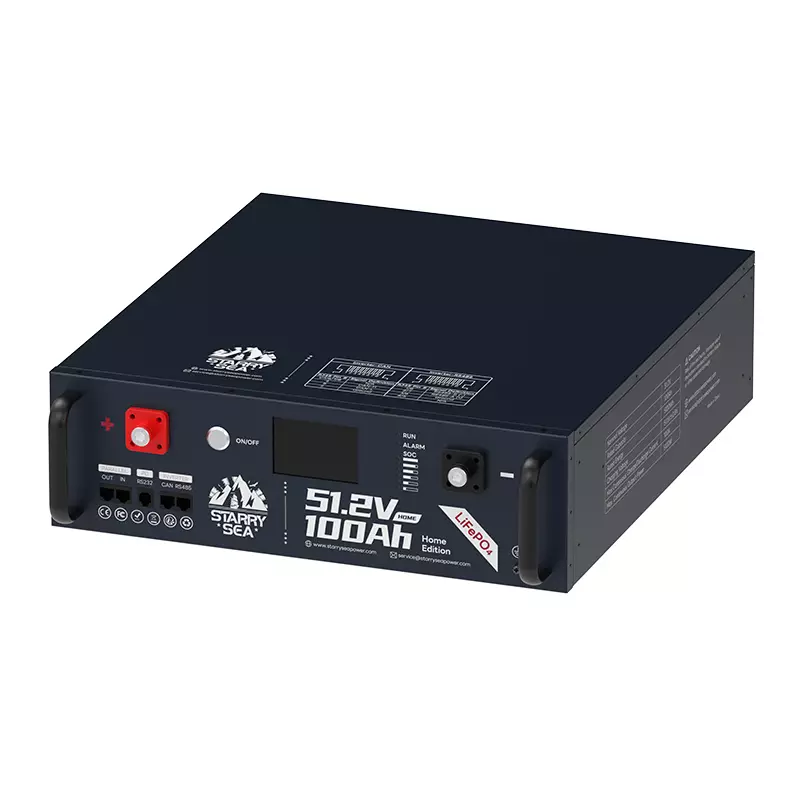

The Starry Sea 51.2V 100Ah Stackable LiFePO4 Battery is a versatile and powerful solution for home energy storage needs. With a capacity of 5.12kWh, this UPS battery is designed to provide reliable power for a variety of applications, including backup power for UPS systems. Its stackable design allows for easy expansion, making it ideal for both small and large-scale energy storage setups.
Reliable Power for Home Energy Storage and UPS Systems
Whether users need to support a UPS battery backup system for their home or ensure an uninterrupted power supply during outages, the Starry Sea 51.2V 100Ah LiFePO4 battery delivers. It serves as a dependable power source, ensuring that critical systems remain operational when the grid goes down. Its lithium iron phosphate chemistry guarantees a long lifespan, making it one of the best UPS battery backup options available.
Expandable Capacity for Growing Energy Needs
One of the standout features of the Starry Sea 51.2V 100Ah stackable LiFePO4 Battery is its expandable capacity. As energy needs grow, we can easily add more batteries to our system, enhancing our UPS backup battery setup. This flexibility makes it perfect for homes with increasing energy demands or for those looking to invest in future-proof energy solutions.

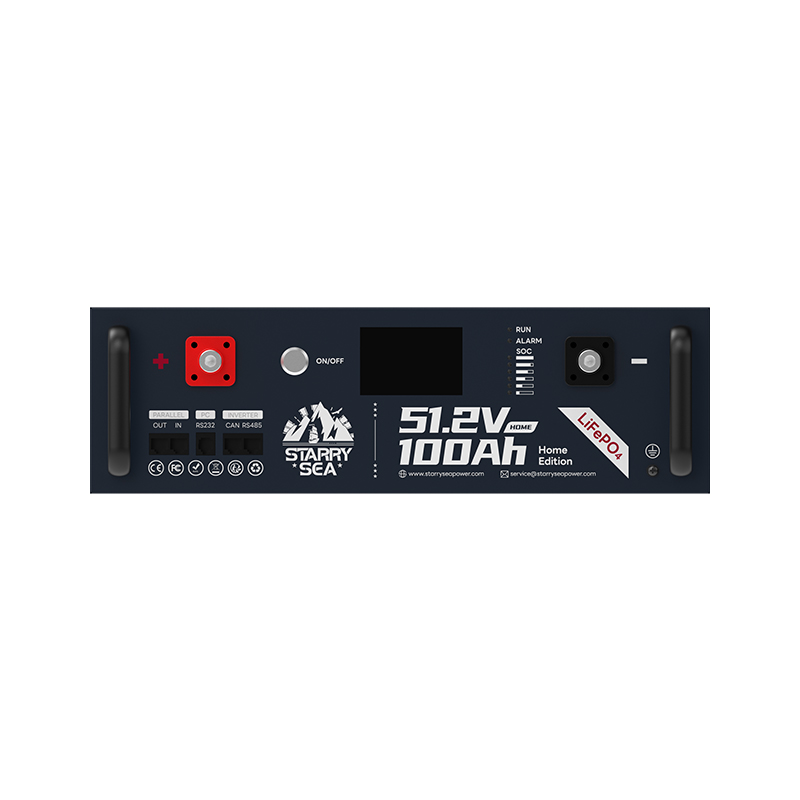

Advanced Monitoring with LCD Display
Monitoring the health and performance of battery systems is crucial, especially for UPS batteries. The Starry Sea 51.2V 100Ah model includes an integrated LCD monitor that provides real-time data on your battery’s status. This feature allows us to keep track of vital information such as charge level, voltage, and overall performance, ensuring that our battery UPS system is always ready when we need it most.
High Energy Density in a Compact Design
With 5.12kWh of energy in a single unit, the Starry Sea 51.2V 100Ah LiFePO4 battery offers a high energy density that is ideal for home energy storage and UPS lithium battery applications. Its compact design ensures that it can be easily integrated into an existing energy storage system or UPS setup without taking up too much space.
Safety and durability are paramount in energy storage solutions, particularly for UPS unit battery systems. The Starry Sea 51.2V 100Ah battery is built with top-tier lithium iron phosphate cells, known for their stability and long life. This battery offers over 4000 cycles, making it a reliable choice for long-term use in both battery backup UPS systems and home energy storage solutions.
The Starry Sea 51.2V 100Ah Stackable LiFePO4 Battery is a top-tier option for anyone looking to enhance their home energy storage or UPS backup battery systems. With its expandable capacity, real-time monitoring via an LCD display, and robust safety features, this lithium-ion battery UPS solution provides peace of mind and reliable power for years to come. Whether you’re safeguarding your home against power outages or building a scalable energy storage system, the Starry Sea 51.2V 100Ah LiFePO4 battery is an ideal partner.
